CORRUGATED ROOF BRACKET

TECHNICAL DATA:

• Weight for Corrugated Roof Bracket: ±100g
• Material: Glassed-filled Polymer
• Fasteners: Tek screws (inland – Zinc plated – Class 1 /2) OR Stainless Steel (Class 5) Tek screws- suggested for Coastal areas – (Additional charge) – Options for both Corrugated and IBR Roof brackets
• Rail fixing point metric: M10
• Max. wind resistance:  44 m/s

PRODUCT DURABILITY AND LIFESPAN:

• 12+ years

FEATURES:

• Corrosion Resistance
• Installation Systems:

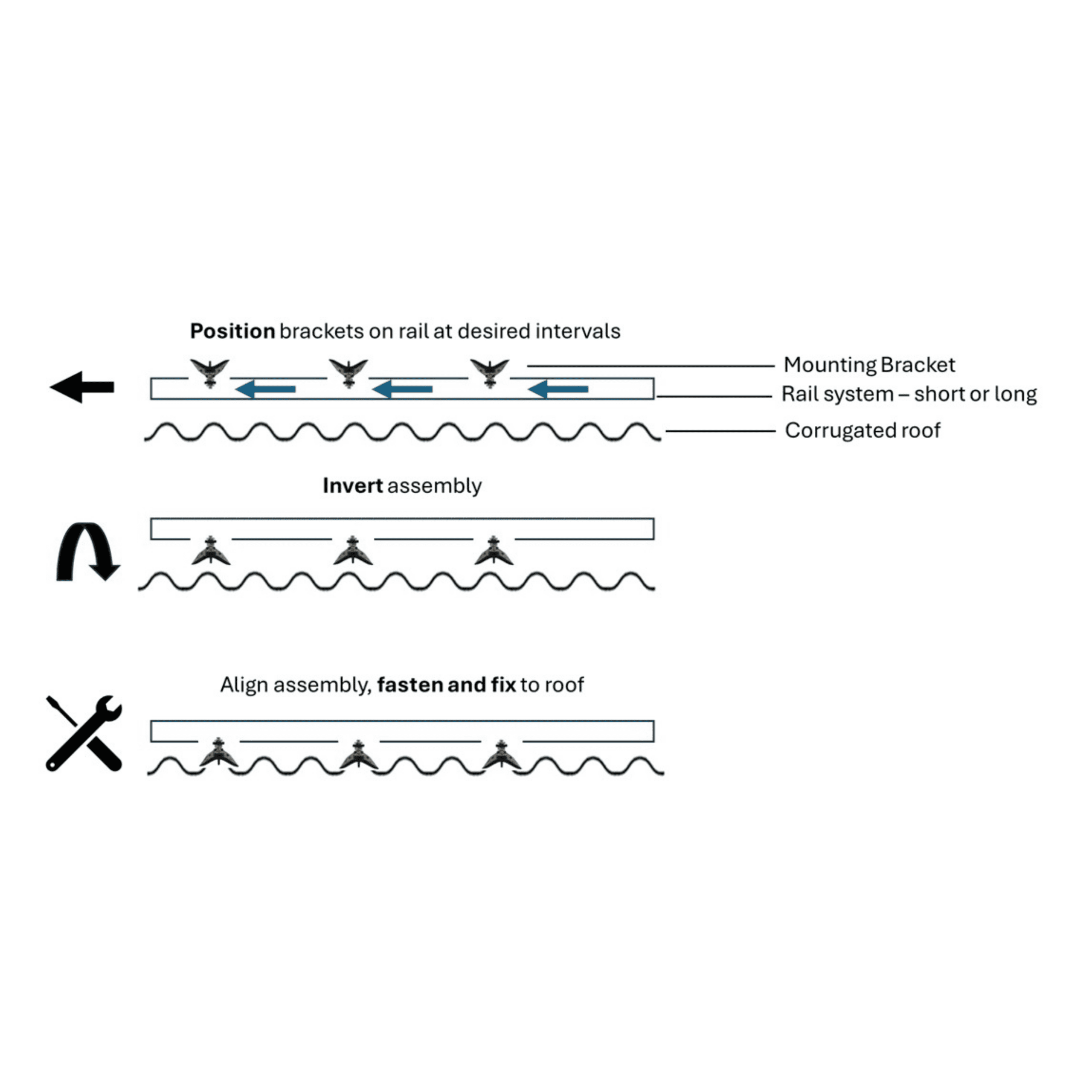

  • Quick-install design with adjustable rail height
  • Compatible with crosswise or lengthwise rail alignment
• Structural Performance :
  • Lightweight yet durable construction
  • Exceptional strength-to-weight ratio
  • Quality Assurance : ISO Certified Materials
• Ease of Use : Simple installation and adaptable workability

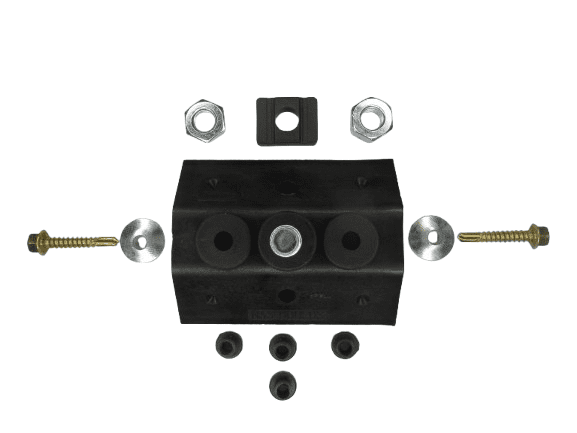

SUPPLIED ACCESSORIES:

• Hardware:
  • Set – Full and Half nuts M10 (Zinc-plated OR Stainless steel)
  • Set of 30mm M10 Screws
  • Self drilling Tek screw + bonded washer
    2 X – Self drilling Tek screw + bonded washers
• Tek screws (inland – Zinc plated – Class 1 /2) OR
  Stainless Steel (Class 5) Tek screws- suggested for Coastal areas (Additional charge)
  Options for both Corrugated and IBR Roof brackets
• 4 x Grommets
• Washers:
  • GF polymer washer (varies by application)

Standard: Tek screw (inland – zinc plated) OR Galvanized Z4 Tek screw- suggested for Coastal areas – (Additional charge) – for both corrugated and IBR bracket.
